Injection machines
Our injection molding machines guarantee you high quality, ability, efficiency and rentability. Our modular products include basic hydraulic models, ergonomic vertical machines, high-performance hybrid machines and high-precision electric machinery. Our injection molding machines guarantee you high quality, ability, efficiency and rentability.
Cheng Hsong Group
MK6.6-A
Every model has a B&R control:
- High-precision temperature control
- Multiple speed and precision stages
- Memory up to 100 molds
- Multiple languages
| Model | Clamping Force (ton) | Machine Dimensions(L*A*Am) | Ejector Force(ton) |
|---|---|---|---|
| JM88 | 88 | 4.3 x 1.2 x 1.8 | 2.8 |
| JM128 | 128 | 4.6 x 1.3 x 1.8 | 4.2 |
| JM168 | 168 | 5.2 x 1.4 x 2 | 4.2 |
| JM208 | 208 | 5.7 x 1.5 x 2.1 | 6.7 |
| JM268 | 268 | 6.4 x 1.6 x 2.3 | 7.7 |
| JM328 | 328 | 6.7 x 1.7 x 2.4 | 7.7 |
| JM408 | 408 | 7.5 x 1.8 x 2.3 | 11.1 | JM488 | 488 | 8.3 x 1.9 x 2.3 | 11.1 |
| JM568 | 568 | 8.6 x 2.0 x 2.3 | 16.6 | JM658 | 658 | 9.6 x 2.2 x 2.5 | 18.2 |
MK6 PRO
| Model | Clamping Force (ton) | Machine Dimensions(L*A*Am) | Ejector Force(ton) |
|---|---|---|---|
| JM88 | 88 | 4.48*1.17*1.88 | 3.4 |
| JM128 | 128 | 4.95*1.25*1.94 | 4.2 |
| JM168 | 168 | 5.43*1.28*2.0 | 4.2 |
| JM208 | 208 | 6.10*1.48*2.15 | 6.7 |
| JM258 | 258 | 6.30*1.56*2.24 | 8.5 |
| JM328 | 328 | 7.45*1.73*2.21 | 11.1 |
| JM398 | 398 | 8.01*1.94*2.21 | 11.1 |
| JM468 | 468 | 8.78*2.04*2.26 | 16.6 |
| JM568 | 568 | 9.18*1.94*2.33 | 16.6 |
| JM668 | 668 | 9.82*2.02*2.24 | 18.2 |
SPARK
| Models | Clamping Force (ton) | Machine dimension(H*W*D) | Machine weight(ton) |
|---|---|---|---|
| SM30HC | 27 | 2.7*0.9*1.3 | 1.7 |
| SM60HC | 60 | 3.9*1.3*1.5 | 4 |
| SM90HC | 90 | 4.2*1.4*1.6 | 4.5 |
| SM120HC | 120 | 4.7*1.5*1.7 | 5.4 |
| SM150HC | 150 | 4.9*1.5*1.7 | 6.3 |
| SM180HC | 180 | 5.8*1.6*1.9 | 7.6 |
| SM260HC | 260 | 6.4*1.7*2 | 10.5 |
| SM1360HC | 360 | 7.6*1.8*2.1 | 14.9 |
| SM460HC | 460 | 8.1*1.8*2.1 | 17.3 |

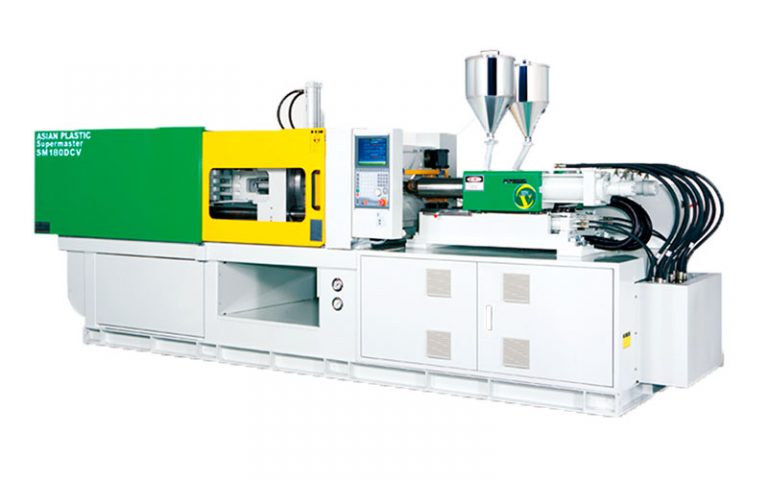

Asian Plastic
Double Platine SM
| Model | Clamping Force (ton) | Machine dimensions(H*W*D) | Machine weight(ton) |
|---|---|---|---|
| SM30HC | 27 | 2.7*0.9*1.3 | 1.7 |
| SM60HC | 60 | 3.9*1.3*1.5 | 4 |
| SM90HC | 90 | 4.2*1.4*1.6 | 4.5 |
| SM120HC | 120 | 4.7*1.5*1.7 | 5.4 |
| SM150HC | 150 | 4.9*1.5*1.7 | 6.3 |
| SM180HC | 180 | 5.8*1.6*1.9 | 7.6 |
| SM260HC | 260 | 6.4*1.7*2 | 10.5 |
| SM1360HC | 360 | 7.6*1.8*2.1 | 14.9 |
| SM460HC | 460 | 8.1*1.8*2.1 | 17.3 |
All models have a B&R controller:
- High precision temperature controller
- Multiple stages of speed and pressure
- Memory for 100 molds
- Multiple languages
